Add To Your WishlistRemote speaker mic PD70X, PD78X
Add To Your WishlistRemote speaker mic PD70X, PD78X

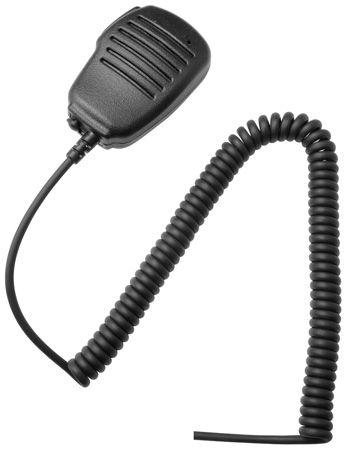

This is a slim-line, lapel worn speaker microphone. This is manufactured from high quality materials with superb audio reproduction. There is a 3.5mm socket on the unit which can be used for an earpiece. This is water resistant with a durable coiled cable. All in all a quality fist size remote speaker/microphone.
Suitable for the following walkie talkies HYTERA PD70X, PD78X series.
Microphone Specifications
Dimension: Ø9.7 x 6.5mm
Sensitivity: -40 ± 3db
Direction: Omnidirectional
Output Impedance: 2.2K Ω
Working Voltage: 1.5V
Audio Response: 50Hz 10KHz
Speaker Specifications
Dimension: Ø36mm
Impedance: 8 Ω±15%
Output Sound Pressure Level: 80±3db
Power Rating: Normal .05W
Maximum 1W
Frequency Range: 280Hz-6KHz average
SPL-10db
Cable Specifications
Cable Diameter: Ø3.8mm
Cable Length: 45cm 1.5m
Colour: Black
Material: Thermoplastic polyurethanes
Click here to recommend this product to a friend

Remote speaker mic PD70X, PD78X
- Description
This is a slim-line, lapel worn speaker microphone. This is manufactured from high quality materials with superb audio reproduction. There is a 3.5mm socket on the unit which can be used for an earpiece. This is water resistant with a durable coiled cable. All in all a quality fist size remote speaker/microphone.
Suitable for the following walkie talkies HYTERA PD70X, PD78X series.
Microphone Specifications
Dimension: Ø9.7 x 6.5mm
Sensitivity: -40 ± 3db
Direction: Omnidirectional
Output Impedance: 2.2K Ω
Working Voltage: 1.5V
Audio Response: 50Hz 10KHz
Speaker Specifications
Dimension: Ø36mm
Impedance: 8 Ω±15%
Output Sound Pressure Level: 80±3db
Power Rating: Normal .05W
Maximum 1W
Frequency Range: 280Hz-6KHz average
SPL-10db
Cable Specifications
Cable Diameter: Ø3.8mm
Cable Length: 45cm 1.5m
Colour: Black
Material: Thermoplastic polyurethanes
